Trackball

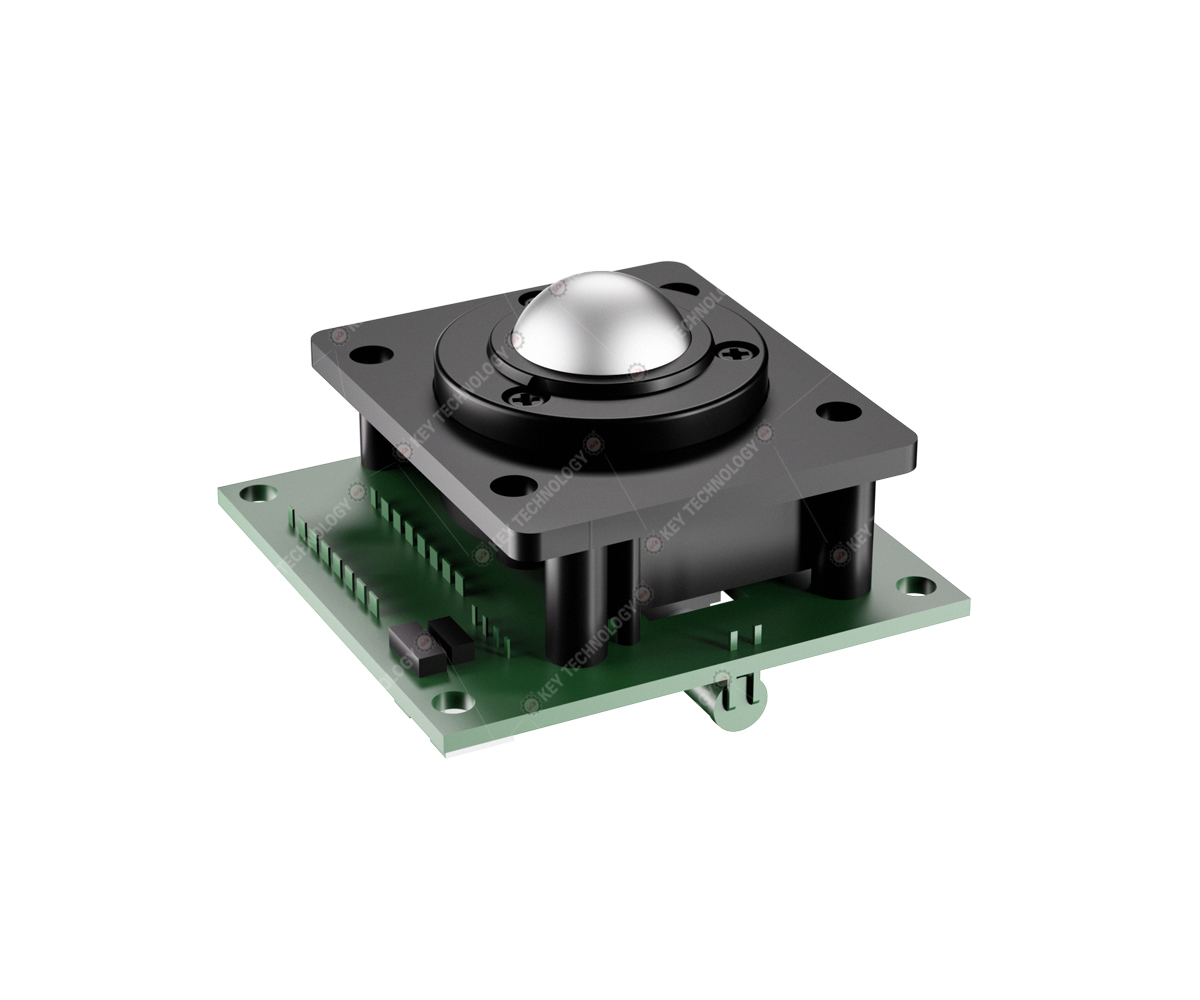

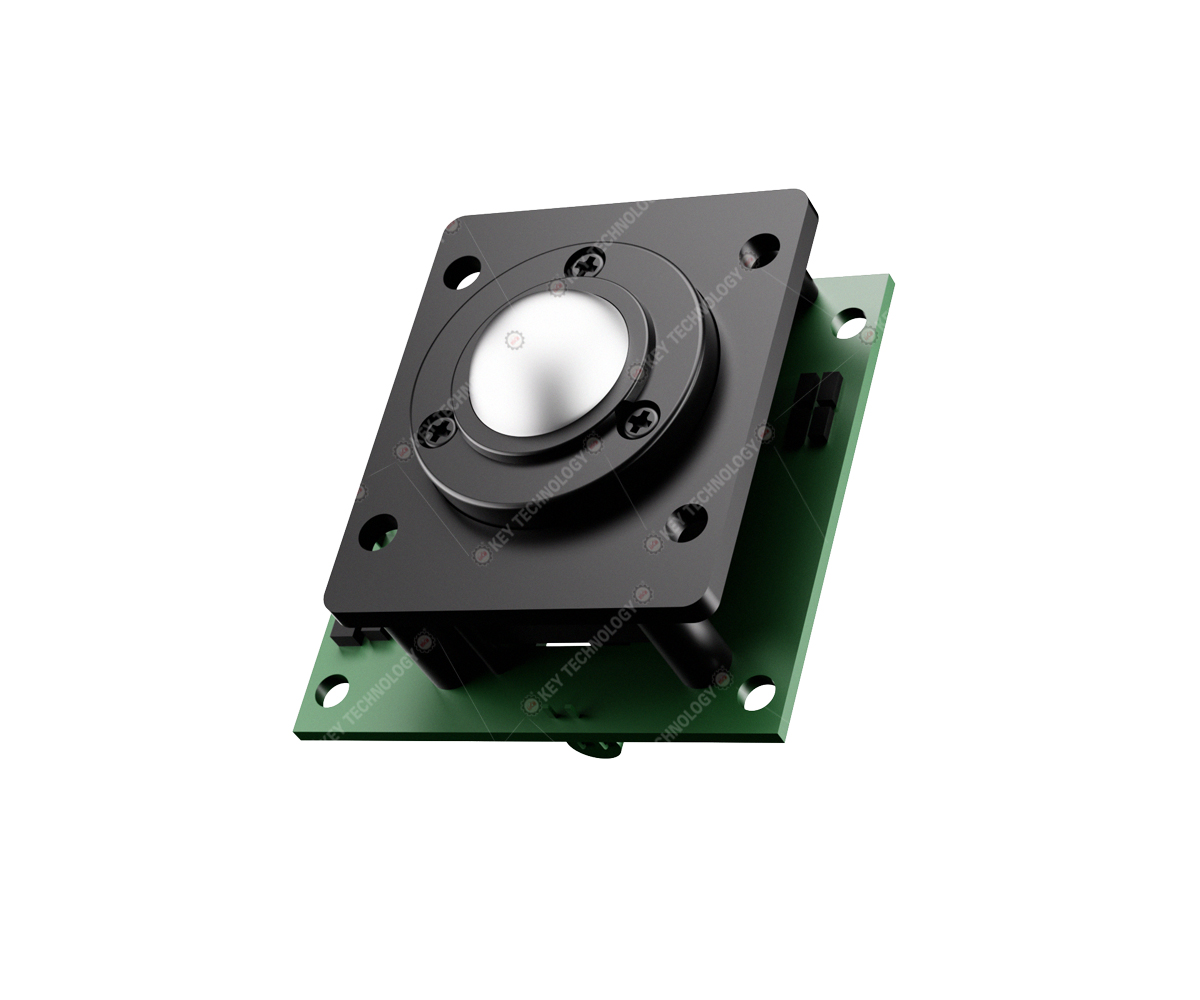

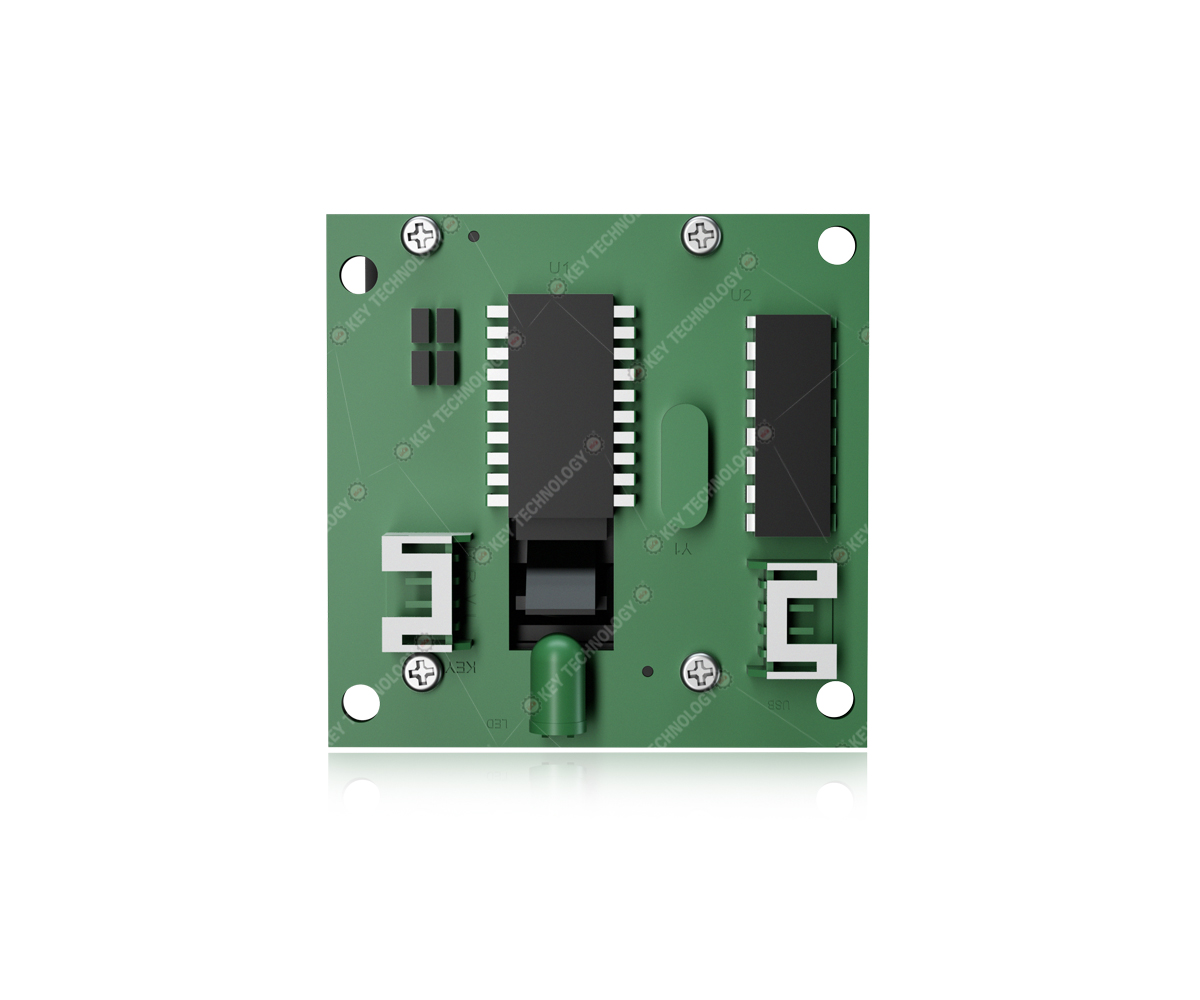

Newdesy K-TEK-16-OTB-AVR
16.0mm IP65 dynamic waterproof removable optical trackball module with 800 DPI resolutions for fast and accurate cursor movement, with durable coating & antimicrobial surface and can be used in harsh environments to well withstand bacteria, USB interface, with 2 external left and right mouse buttons optional, panel mounted solution.
- Original model
- K-TEK-16-OTB-AVR
- Protection
- IP65
- Interface
- USB/PS2 optional
- Mounting
- Panel mount
- MOQ
- From 1 unit
- Customization
- Layout, language, interface, backlight, branding and mounting
Engineering data
Technical Specifications
General & Mechanical
| Category | Trackball |
|---|---|
| Mounting Solution | Panel mount |
| Ball Diameter | 16.0mm |
| Application | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas, marine etc. |
Electrical & Interface
| Interface | USB/PS2 optional |
|---|
Environmental & Reliability
| Protection Level | IP65 |
|---|---|
| Operating Temperature | -40ºC to +60ºC |
Engineering note
Configured Around Your Application
Final specifications are confirmed during engineering review. Share the installation space, required layout, interface, operating environment and expected quantity so our team can recommend the appropriate standard platform or customization route.
Typical lead time
For standard products and simple customization, such as logo changes, orders under 200 units typically require 7–30 days and larger orders typically require 30–60 days. Highly customized projects require an engineering assessment and may take approximately 3–6 months, depending on development, prototyping, testing and approval requirements.
