Scissors Switch Keyboard
Newdesy K-TEK-V277TP-FN-BL-FC-PR-ML-DWP

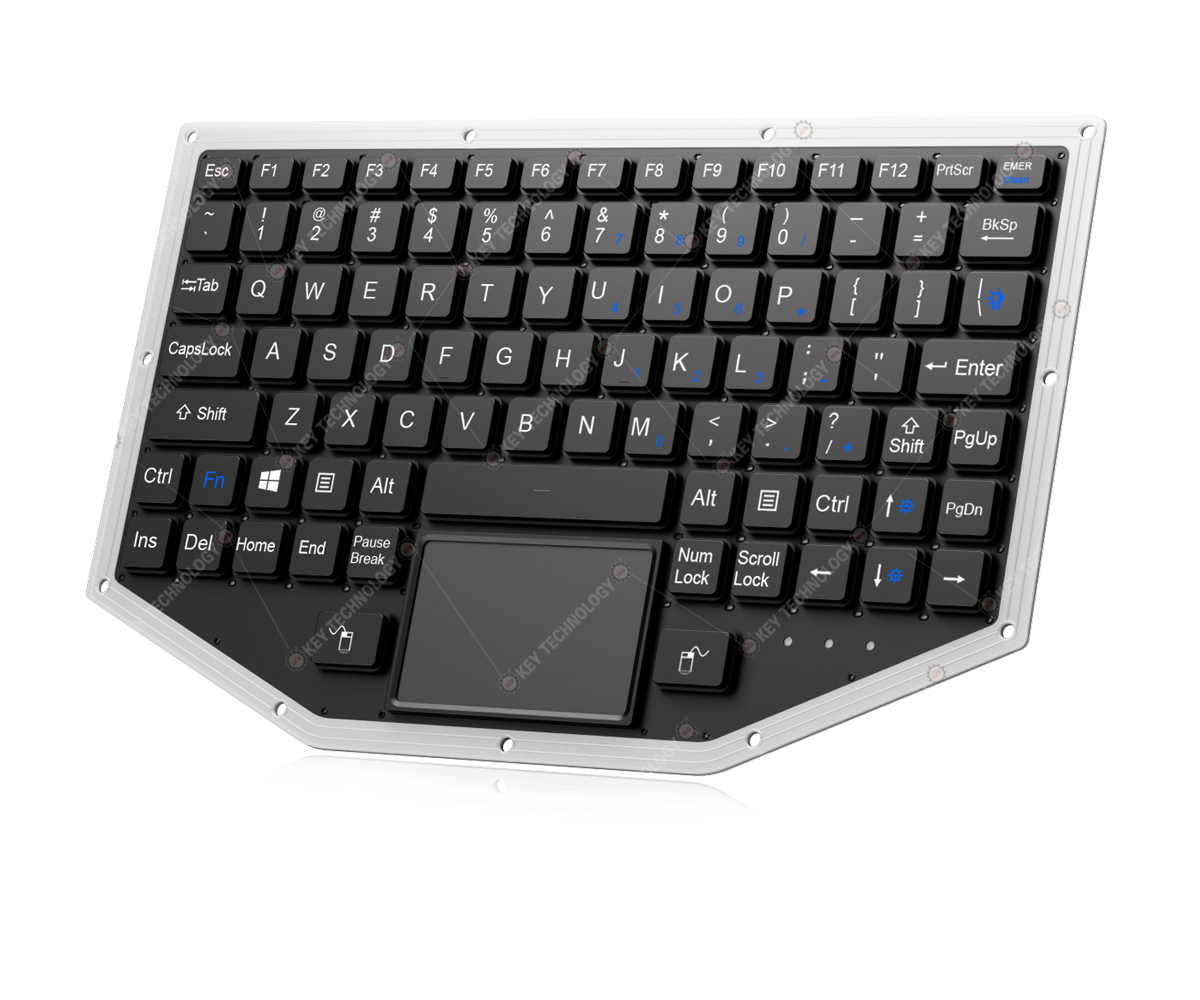

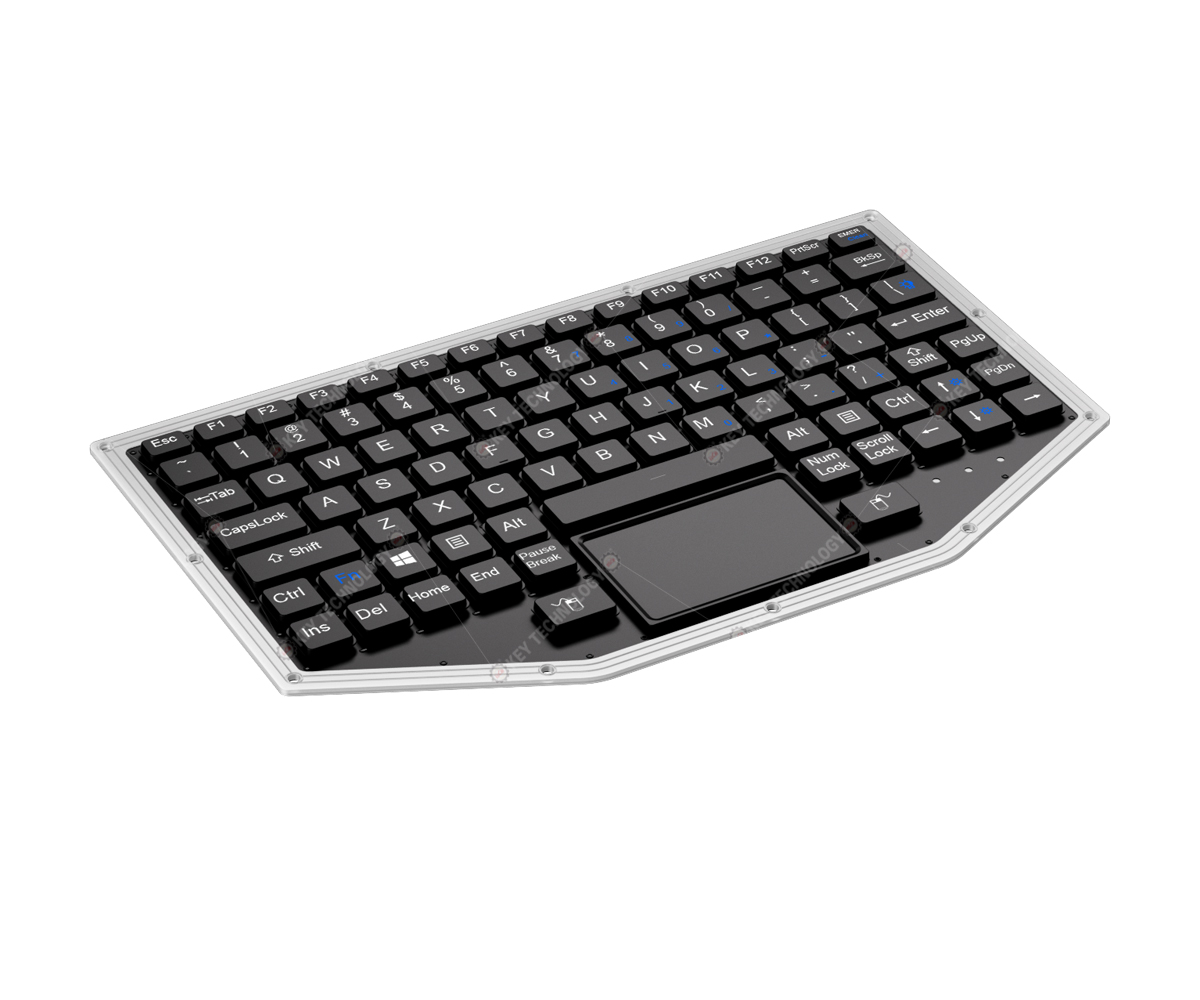

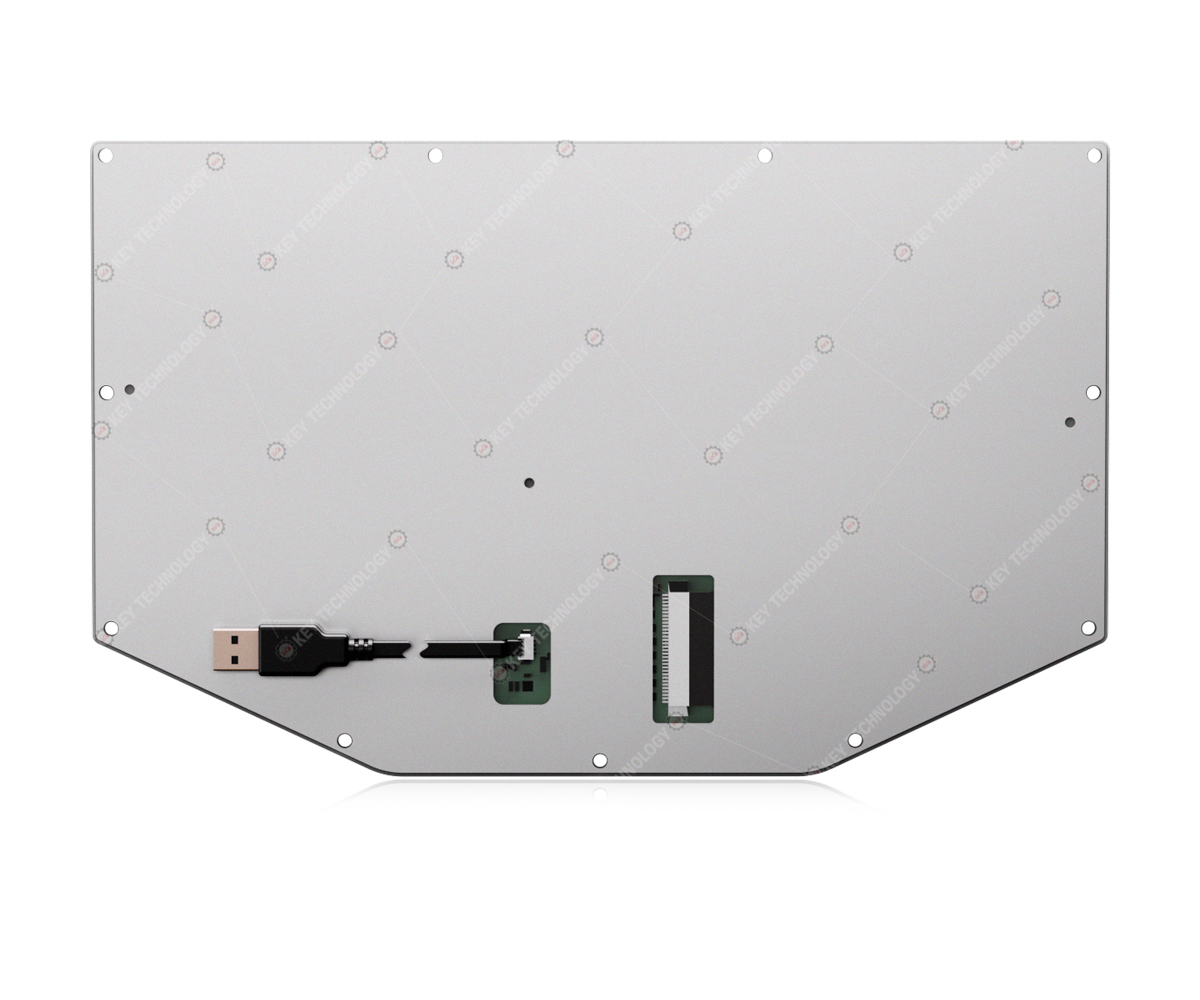

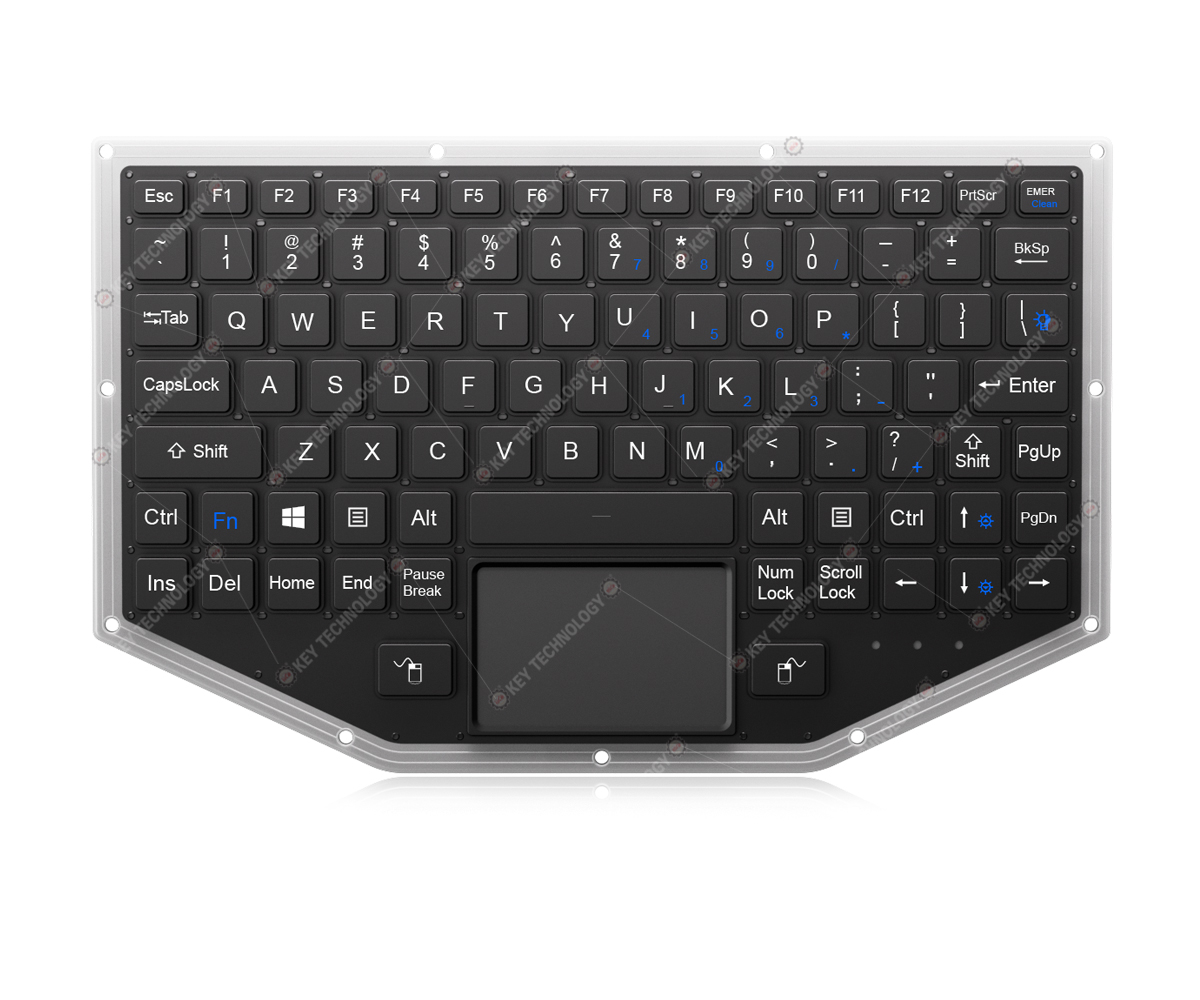

90 keys IP6 7 fully dynamic sealed waterproof and durable embedded ultra thin rugged patented scissor switch keyboard with built-in ultra-thin Flexible Printed Circuit , integrated with the fully sealed waterproof and reinforced wide-temperature touchpad with 400 DPI resolutions for fast cursor position as well as with 2 left and right mouse buttons.
- Original model
- K-TEK-V277TP-FN-BL-FC-PR-ML-DWP
- Protection
- IP67(front panel)
- Interface
- USB
- Mounting
- Panel mount
- MOQ
- From 1 unit
- Customization
- Layout, language, interface, backlight, branding and mounting
Engineering data
Technical Specifications
General & Mechanical
| Category | DWP Scissors Switch Keyboard |
|---|---|
| Key Number | 90 keys + 2 mouse buttons |
| Key Travel | 1.20mm±0.10mm |
| Backlight | White |
| Key Switch | Rugged scissor switch technology |
| Mounting Solution | Panel mount |
| Application | Vehicle, aerospace, naval, maritime, Radar, display console, portable rugged laptop, UAV ground station etc. |
Electrical & Interface
| Interface | USB |
|---|
Environmental & Reliability
| Protection Level | IP67(front panel) |
|---|---|
| Operating Temperature | -40ºC to +65ºC |
Engineering note
Configured Around Your Application
Final specifications are confirmed during engineering review. Share the installation space, required layout, interface, operating environment and expected quantity so our team can recommend the appropriate standard platform or customization route.
Typical lead time
For standard products and simple customization, such as logo changes, orders under 200 units typically require 7–30 days and larger orders typically require 30–60 days. Highly customized projects require an engineering assessment and may take approximately 3–6 months, depending on development, prototyping, testing and approval requirements.
